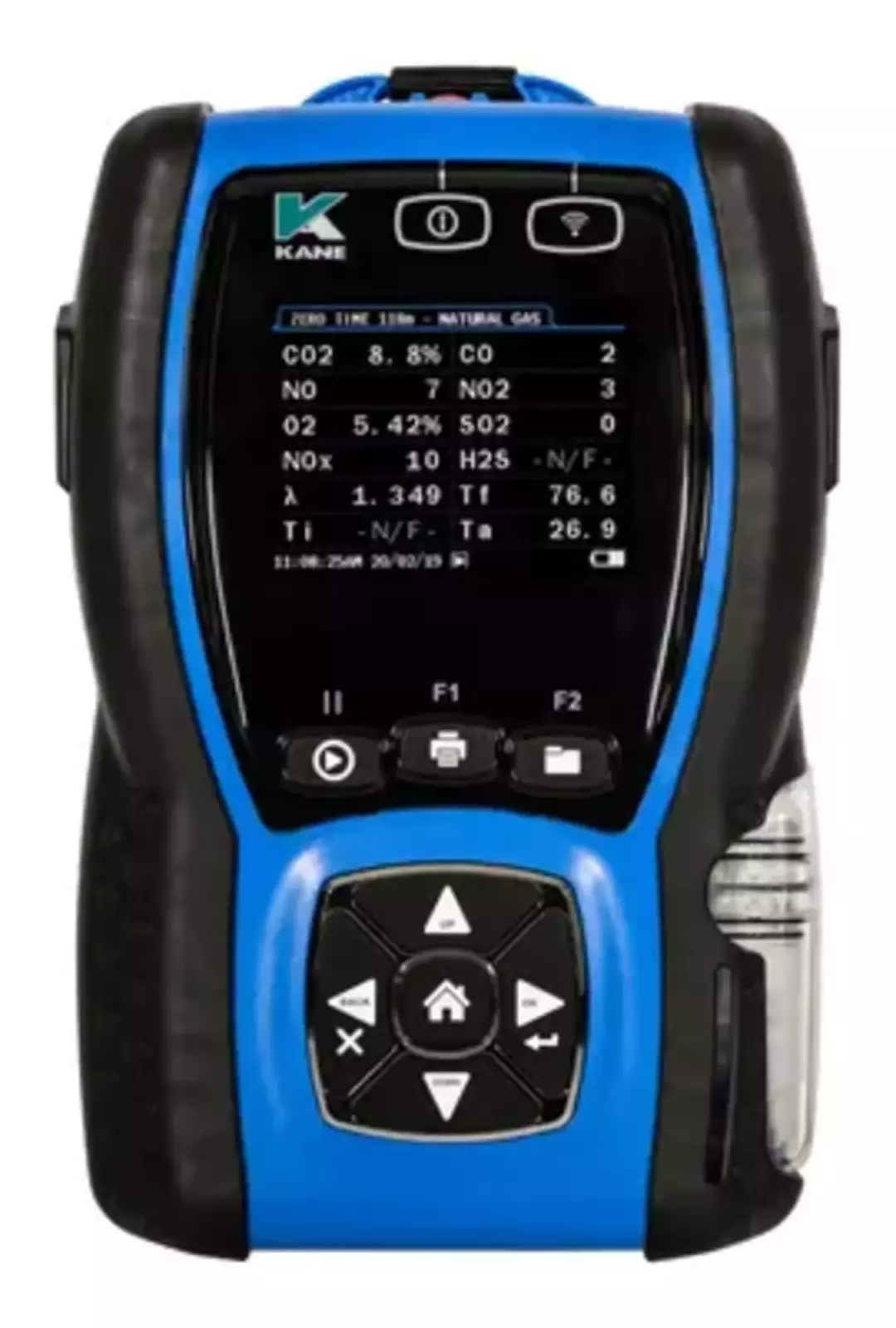

World 1st Heating & Cooling Analyser with large memory & display with KANE LINK & KANE CARE LIFETIME WARRANTY
- Test domestic & commercial heating & hot water systems
- Measures O2, CO to 10,000pm with H2 compensation
- H2 measurement & NOx option to 5,000ppm
- Commission boilers, perform sweep & room CO migration tests
- Test building ventilation with KANE LINK wireless probes
- Test single & differential flue gas & system pressures to 2 psi / 160 mbar
- Automatic let by & tightness tests
- Hydrophobic water trap stops vapour damage
- See, save & send tests to KANE LIVE app
- Fast & easy operation with large colour graphic display & rugged, compact design
- KANE LOCK - Stolen analyser automatically disabled
Features
Backed by KANE CARE LIFETIME WARRANTY
KANE460 supplied with CP2 combustion probe, 2 psi pressure sensor & hose, CU12VDC2A21 charger, MSC00017 handset pouch
KANE460 HVACR KIT option includes:
KANE-DTHA2 anemometer & 20128 extender
KANE-HUB4 kit with 2 × WPCP wireless temperature clamp probes & 2 × WPP wireless pass through pressure probes
KANE-IRP3 Infra-red printer & 20106 backpack
Applications
- Test domestic & commercial gas, oil & biomass appliance performance & safety
- Perform structured let by, tightness & flue draught tests
- New boiler structured commissioning test
- Appliance sweep test for CO leaks
- Simultaneous 4 room CO migration test with up to 4 KANE79 wireless CO monitors (option)
- Heat pump temperature differential test
- A/C & refrigeration superheat & subcool test
- Building ventilation & IAQ test with KANE-DTHA2 wireless anemometer for airflow, temp & RH
Measures
- O2 0-21%
- CO 0-10,000ppm H2 compensated with over range protection
- Measures H2
- NO 0-5,000ppm option
- Temperature - inlet / flue gas / differential / ambient
- High accuracy differential pressure meter +/- 160mbar
Calculates
- CO2 - 0-99%
- CO/CO2 ratio
- Excess air
- Combustion efficiency
- NOx (if NO sensor fitted)
- A/C & Refrigeration subcool & superheat
Fuel Types
- 12 standard fuels including: Natural Gas, LPG, Butane, Propane, Light Oil, Heavy Oil, plus 5 user fuels
- 40 refrigerants including: R22, R32, R134a, R290 & R410A
Box Contents
Supplied with pressure hose, CP2 probe, MSC00117 protective pouch & CU12VDC2A21 charger
Optional HVACR KIT kit enables wireless A/C & Refrigeration & IAQ tests
Option to link up to 4 KANE79 CO monitors for simultaneous room CO migration tests
Videos
KANE460 - Checking and Replacing the Watertrap
KANE460 - Checking the Watertrap and Filters
KANE460 - Connecting a Probe
KANE460 - Connecting to Link Devices
KANE460 - First Charge
KANE460 - Setting the Time and Date
Service Price
| YEAR 1-4 |
|---|
| £255 |
Calibration or Conformity Certificates included, as appropriate
